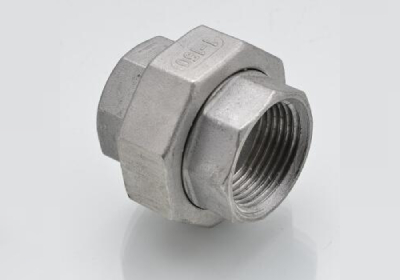

螺紋活接頭 | Threaded Union

產品分類 / 用途

  • 螺紋活接頭
    Threaded Union Specification:
    Size/尺寸1/8″~4″ (DN6~DN100)
    Class/壓力等級2000 LBS, 3000 LBS, 6000 LBS
    Type/連接形式Threads: American National Standard Taper Pipe Threads, NPT(ANSI/ASME B1.20.1-1983), Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination.
    Surface Treatment/表面處理Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken, 熱浸鍍鋅，環氧樹脂和FBE涂層，電拋光，噴砂，發黑
    Materal/材質Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
    Manufacturing process/制造工藝Cutting, Heat treatment, Forging, Machining, 鋸切、熱處理、模鍛、機加工
    Manufacturing Standards/制造標準MSS SP-83

    Threaded Union Material Grades:
    Stainless Steel/不銹鋼ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
    Duplex & Super Duplex Steel/雙相鋼 ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
    Carbon Steel/碳鋼ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
    Alloy Steel/合金鋼 ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
    Copper Alloy Steel/銅合金Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
    Nickel Alloy/鎳合金 ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

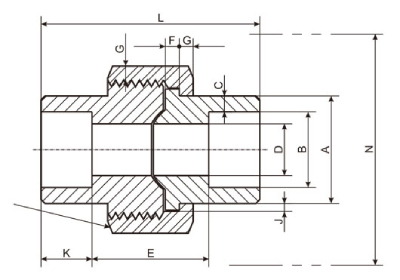

    Threaded Union Dimesions:

    Threaded Pressure Class Pipe Schedule
    Class 2000S80/XH
    Class 3000S160
    Class 6000XXH

    Nom.
    Pipe
    Size    		Pipe EndWallWater
    Way Bore    		Male
    Flange    		NutThreads
    Per
    25.4mm    		BearingLength
    Assem.
    Nom.    		Clear
    Assem.
    Nut
    Min.AMin.CDMin.FMin.GMax.HMin.JLN
    1/8"14.72.418.43
    6.43    		3.183.18161.2441.450.8
    1/4"19.03.0211.13
    9.45    		3.183.18161.2441.450.8
    3/8"22.93.2014.27
    13.51    		3.433.43141.3746.055.9
    1/2"27.73.7317.86
    17.07    		3.683.68141.5049.058.4
    3/4"33.53.9123.01
    21.39    		4.064.06111.6856.966.0
    1"41.44.5528.98
    27.74    		4.574.45111.8562.078.7
    1-1/4"50.54.8537.69
    35.36    		5.335.21112.1371.194.0
    1-1/2"57.25.0843.54
    41.20    		5.845.59102.3176.5111.8
    2"70.15.5455.58
    52.12    		6.606.35102.6986.1132.1
    2-1/2"85.37.0166.27
    64.31    		7.497.1183.07102.4149.9
    3"102.47.6288.25
    77.27    		8.268.0083.53109.0175.3
    (1)Dimensions in Millimeters.
    (2)Upper and lower values for each size are the respective maximum and minimum dimensions.
